Ratings of CCTV camera brands in year 2022, 2021, 2020, 2019.
At JVSG we continuously strive to understand the needs of our customers, and to deliver to them the tools to help them build the best surveillance systems possible. Part of the way we do this is by allowing users to send us anonymized statistics on their designs.
Most popular security camera brands in 2023
In 2023, Hikvision, Axis, and Hanwha Techwin were the industry leaders in the security camera market. These brands were the top choices for video surveillance system designers using professional software for surveillance system design.
Hikvision maintained strong global popularity, especially in Western Europe, making it the preferred choice for many.
Axis Communications, though slightly less popular globally, was the preferred brand in North America and Western Europe.
Hanwha Techwin, despite having a smaller global presence compared to Hikvision and Axis, was a popular choice for many designers in 2023, particularly in North America and Western Europe.
Furthermore, it’s interesting fact is that despite Hikvision’s global dominance, it held only 3.4% of the market share in North America.
Most popular security camera brands in 2022
2019-2021 Animated Statistics of popular Security Cameras
Worldwide JVSG rating 2022:
1. Hikvision – 21.8 %
2. Axis – 19.5 %
3. Dahua – 11.6 %
4. Hanwha Techwin – 9.5 %
5. Bosch – 7.6 %
6. Intelbras – 3.4 %
7. Avigilon – 2.8 %
8. Mobotix – 2.2 %
9. Uniview – 2.0 %
10. Vivotek – 1.3 %
11. HuaWei – 1.2 %
12. Pelco – 1.0 %
13. Panasonic – 0.9 %
14. Honeywell – 0.8 %
15. Abus – 0.7 %
It is important to note that the JVSG Security Camera Brands Ratings does not indicate the best CCTV cameras or the best security camera brand, but rather reflects data regarding the popularity and ranking fluctuations of various security camera brands, models and cctv camera types and resolutions. Rating is based on statistics gathered by IP Video System Design Tool. JVSG Ratings are updated quarterly.
Rating of cameras with different resolution, 2021-2022
The Impact of High Resolution Cameras on System Designs
A trend towards higher resolution cameras makes proper system designs more important than ever.
In our analysis from Q2 2022 design statistics we see that over 50% of the cameras used in designs are 4MP or greater, particularly in the North American and Western European markets. Higher resolutions certainly help customers get more from their surveillance systems, and increase the odds that cameras can capture enough detail to help with investigations. But higher resolutions also mean higher bandwidth and storage costs.
Rating of cameras with different resolution, 2020-2021
Many of these higher resolution cameras also have advanced video codecs, which offer dynamic frame rate or bit rate adjustments, or other features to help reduce total bandwidth. Some of this is the result of standards like H.265 encoding. However, some manufacturers are producing their own specialty codec enhancements to get further reductions in total bandwidth. All of this means that a 6MP camera does not necessarily use 3x as much bandwidth as a 2MP camera, and a 4K camera from one brand might actually be able to produce a quality image stream with less total throughput than a 5MP camera from another brand.
While these higher resolution cameras, and advanced codecs, open up opportunities for video designers to better meet customer expectations for image detail, this also means that bandwidth and storage requirements can not be as easily estimated as they were in the past. Also, certain industries such as banking, cannabis, or transportation may dictate that video be retained for minimum periods of several months, or even years. While storage costs have come down, storage is still not so cheap that we can afford to build excessively large arrays, a properly sized storage can ensure the customers video rendition needs are met without consuming excessive rack space or power and cooling needs.
The JVSG Design Tool and Online Bandwidth/Storage Calculator can help you model your system based on specific criteria for each camera and scene. Calculations can help customers understand why a certain amount of storage is being recommended, and which cameras or areas create the biggest impact on storage costs. The instant feedback and ease of use enable these calculations to be done in real time with the customer if needed to help reduce time spent re-designing systems over and over.
Our customers tell us that this design tool consistently helps them win bids and make their customers feel more informed and confident in their proposals, which helps reduce their sales cycles and related costs.
Free CCTV Calculator
See short calculator overview video
Year 2021 Statistics
Rating of cameras with different resolution in 2021
IP Video System Design Tool software as a data source
Ratings are based on aggregated and anonymous statistical data gathered by our video surveillance system design software, IP Video System Design Tool (developed by IPICA LLC). For world rating the number of data points is more than 250,000.
Statistics are only made available when a user chooses the “Quality Improvement Program/Send anonymous performance and usage statistics” option in the IP Video System Design Tool installer or selects the “Quality Improvement Program” option in the program preferences.
You can download IP Video System Design Tool from here:
Download a trial version of IP Video System Design Tool [365 MB for Windows 11/10/8/7] details…
It is important to mention that the accuracy of the Security Camera Brands Ratings in various countries depends heavily on whether or not a significant number of IP Video System Design Tool users have the Quality Improvement Program option enabled in their specific country.
*We cannot measure Vivotek ratings precisely enough because for this brand there is an OEM version of IP Video System Design Tool that do not collect usage statistics.
Previous ratings (Q1, Q2, Q3 2019-2021)
Ratings of CCTV camera brands in 2020
Rating of cameras with different resolution in 2020
Ratings of CCTV camera brands, 2019
Rating of cameras with different resolution, 2019
The JVSG Camera Resolution Ratings show the resolution of many popular cameras.

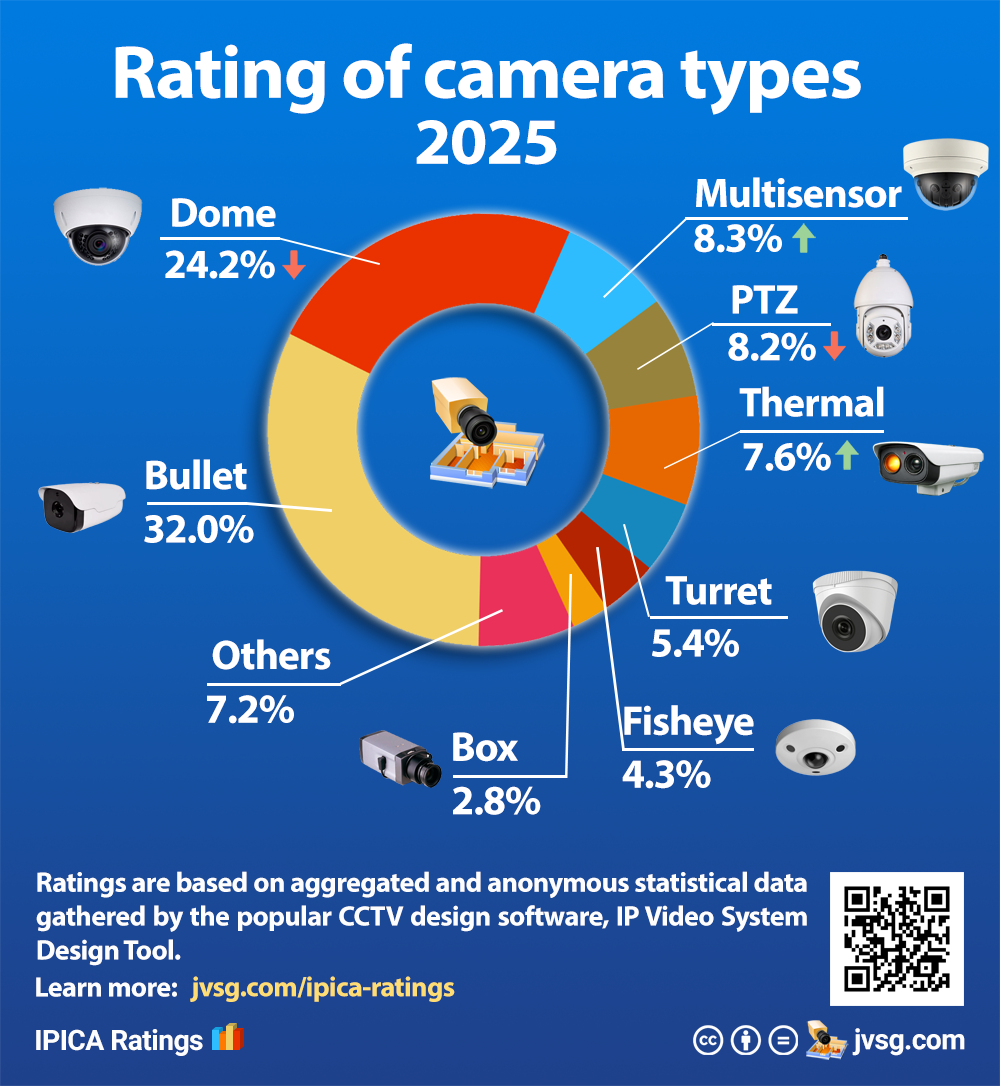

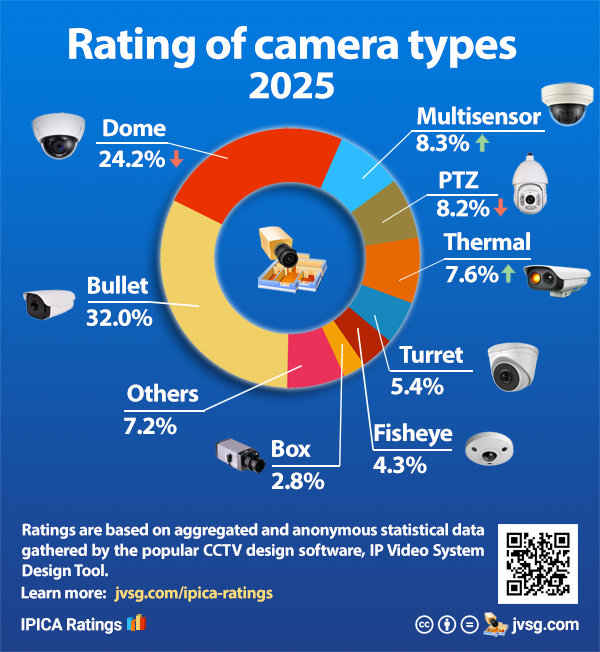

Rating of camera types
Previous ratings (first three quarters of 2019-2021)
The materials (ratings and info-graphics) within are distributed under the Creative Commons Attribution-NoDerivatives 4.0 International Public License.
Usage data is processed by Google Analytics for (Mobile) Apps; IPICA LLC and its employees can access only aggregated and anonymous data. To increase the level of user privacy, the program uses random user ID for Google Analytics.
The application will not transmit to Google Analytics any personally identifiable data. Google Inc. is a U.S. company, the information will be transmitted to and stored by Google Inc. on servers in the United States.
Disclaimer: Although all reasonable efforts are made to present current and accurate information, there are no guarantees of accuracy of information made. IPICA LLC and its employees and agents do not make any guarantees about the content, accuracy, or timeliness of information on the website. The use of information on the IPICA and JVSG.com website is strictly voluntary and at the user’s sole risk. IPICA LLC disclaims all express warranties included in any materials and further disclaims all implied warranties, including warranties of merchantability, fitness for a particular purpose, and non-infringement of proprietary rights. IPICA LLC shall not be liable for any damages of any kind. All trademarks belong to their respected owners.
We plan to improve ratings by utilizing statistics gathered by our free CCTV Lens Calculator in the near future.
